Requirements
User Stories
Persona: Casual Player
A player who wants a fun arcade session on their PC.
- As a player, I want to move my plant left and right so that I can dodge incoming zombie projectiles.
- As a player, I want my plant to shoot automatically so that I can focus on movement and strategy.
- As a player, I want to see my remaining life points so that I know how close I am to losing.
- As a player, I want wallnuts placed in front of me so that they absorb damage and protect me.
- As a player, I want to collect power-ups dropped by defeated zombies so that I can gain a temporary advantage.
- As a player, I want to choose my plant skin before the game so that I can personalise my experience.
- As a player, I want to adjust the volume so that I can control audio to my preference.
- As a player, I want to pause the game so that I can take a break without losing progress.
- As a player, I want to see a victory screen when I survive all waves so that I feel rewarded.
- As a player, I want to see a game over screen when I die so that I can restart or return to the menu easily.

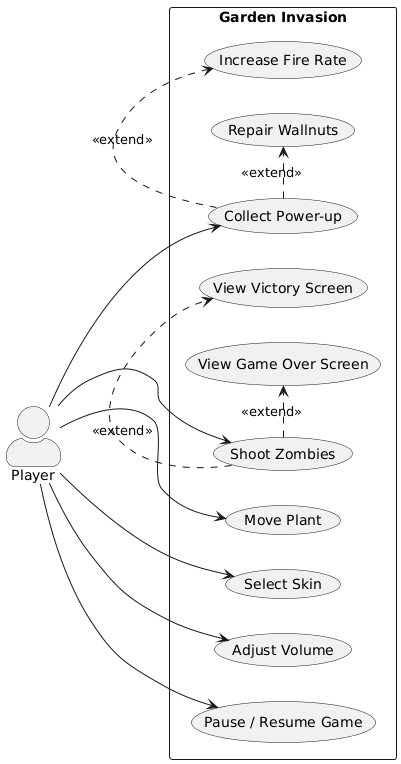

Figure 1 — Garden Invasion use case diagram
Requirements Analysis
Functional Requirements
| ID | Requirement | Acceptance Criteria |
| F01 | The player can move the plant left and right within screen bounds | Plant does not go outside left or right screen edge |
| F02 | The plant shoots projectiles automatically at a fixed rate | Projectiles are fired at regular intervals without user input |
| F03 | Zombies spawn in waves of increasing difficulty | Each wave contains more or faster zombies than the previous |
| F04 | Projectiles from the player damage and can destroy zombies | Zombie health decreases on hit; zombie is removed at 0 health |
| F05 | Zombie projectiles and zombie contact damage the plant | Plant life points decrease; game over when life points reach 0 |
| F06 | Wallnuts absorb damage from zombie projectiles and zombie contact | Wallnut health decreases on hit; wallnut is removed at 0 health |
| F07 | Defeated zombies drop power-ups with 90% probability | A collectible sprite appears at the zombie’s death position |
| F08 | IncreasingFirePU temporarily reduces plant shoot cooldown by 40% | shoot_SecondTime drops to 60% of base for 5 seconds after collection |
| F09 | RepairWallnutPU restores all wallnuts to full health and respawns destroyed ones | All 4 wallnut slots are occupied and show full-health sprite after collection |
| F10 | The player can select a skin before the game starts | Selected skin persists into gameplay and correct sprite is shown |
| F11 | The player can adjust music and sound effect volume | Audio plays at the configured volume level |
| F12 | The player can pause and resume the game | Game state is frozen on pause and correctly resumes |
| F13 | A victory screen is shown when all waves are cleared | Victory screen appears after last zombie is defeated with no pending spawns |
| F14 | A game over screen is shown when the plant is destroyed | Game over screen appears immediately when plant life reaches 0 |
Non-Functional Requirements
| ID | Requirement | Acceptance Criteria |
| NF01 | The game must run at a stable 60 FPS on standard hardware | Frame rate stays at or near 60 FPS during normal gameplay |
| NF02 | Controls must be responsive with no perceptible input lag | Player movement and shooting respond within one frame |
| NF03 | The codebase must follow MVC separation of concerns | No rendering logic in Model files; no game logic in View files |
| NF04 | The game must be runnable on Windows, macOS, and Linux | Game launches and plays correctly on all three platforms |
| NF05 | Test coverage must cover all core model and controller logic | All priority test cases pass in CI without failures |
Implementation Requirements
| ID | Requirement | Justification | Acceptance Criteria |
| I01 | The project must be implemented in Python 3.12 | Course requirement (Software Engineering @ DTM/UniBo) | The project runs with python3 and no Python 2 syntax is present |
| I02 | Pygame must be used as the game and rendering library | Course requirement; provides sprite, event, and collision primitives needed | All rendering, input handling, and collision detection use Pygame APIs exclusively |
| I03 | The project must follow the MVC architectural pattern | Course requirement to demonstrate software design principles | Model files contain no rendering calls; View files contain no game logic; Controller files mediate between the two |
| I04 | The game must run locally on a desktop environment without internet access | Ensures accessibility and easy testing in offline environments | The game launches and plays fully without any network connection or external authentication |
Glossary
| Term | Definition |
| Plant | The player-controlled sprite that moves and shoots |
| Wallnut | A defensive sprite placed in front of the plant that absorbs damage |
| Wave | A timed group of zombies spawned progressively during gameplay |
| Power-up | A collectible sprite dropped by a defeated zombie that grants a temporary effect |
| IncreasingFirePU | Power-up that reduces the plant’s shoot cooldown for 5 seconds |
| RepairWallnutPU | Power-up that restores all wallnuts to full health and respawns destroyed ones |
| Shoot cooldown | The minimum time (ms) that must pass between two consecutive shots |
| Life points | Integer counter representing remaining health for the plant or a wallnut |
| Skin | A visual variant of the player sprite (Classic, Cactus, Carnivorous Plant) |
